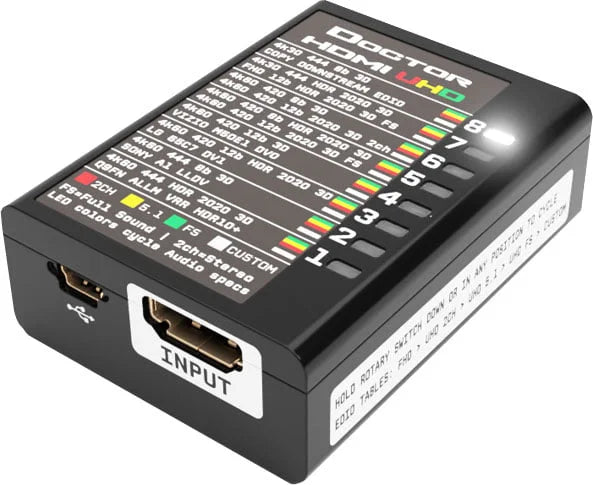

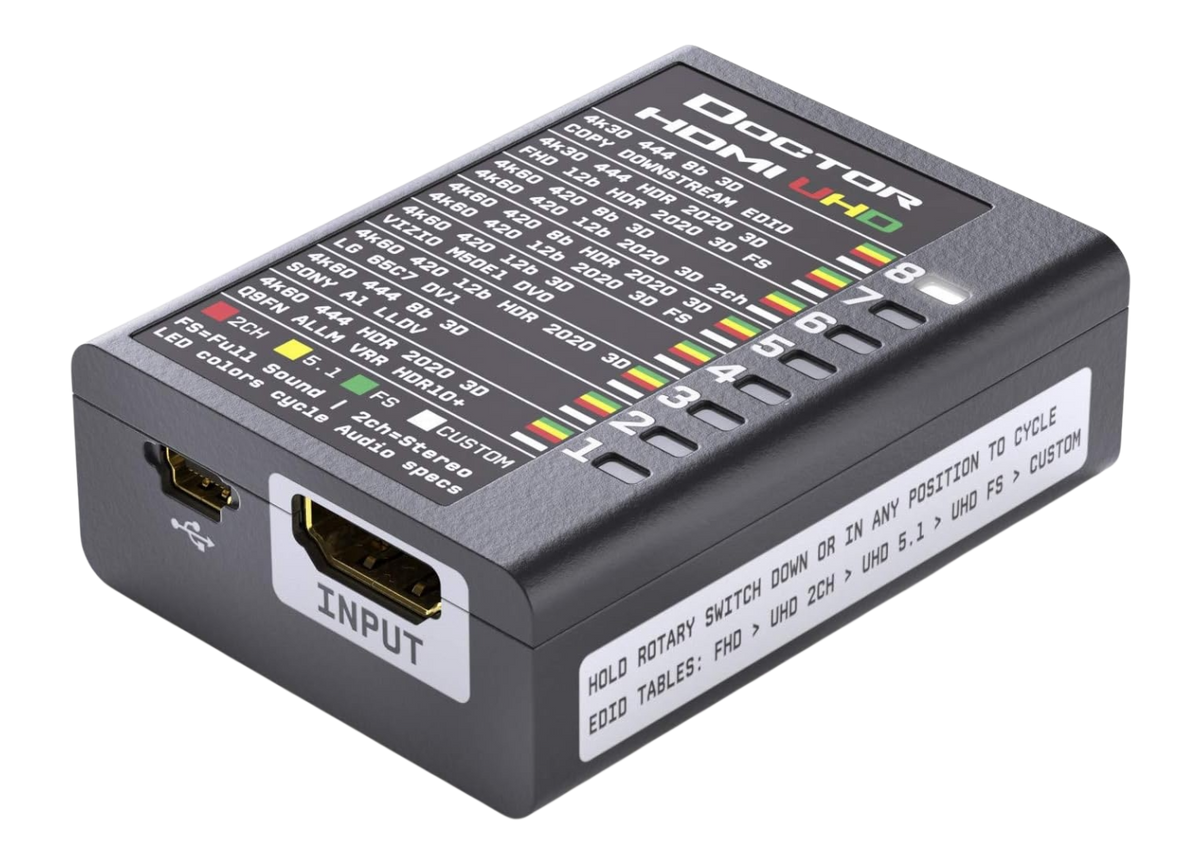

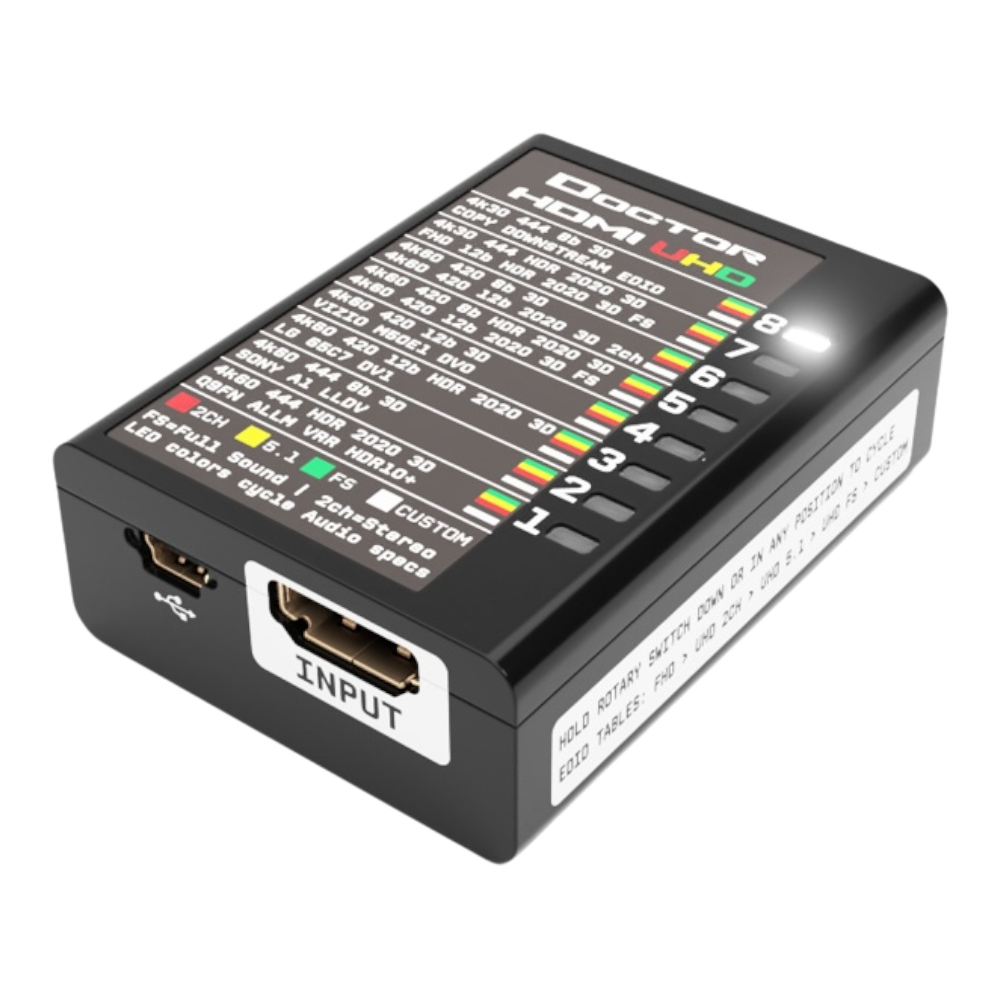

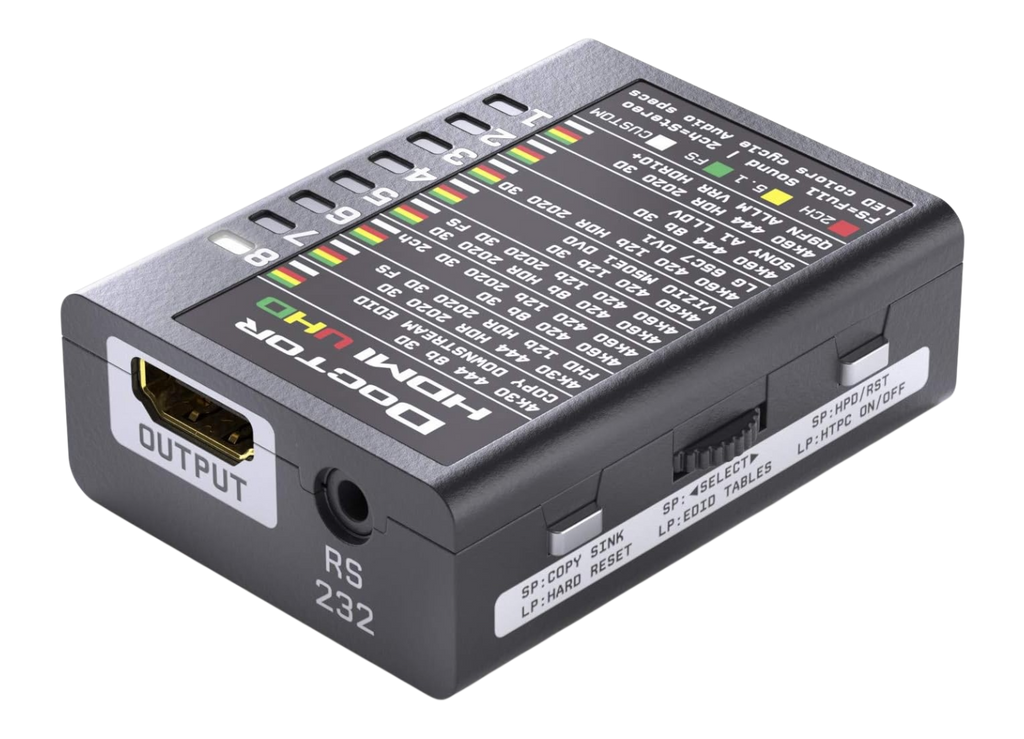

DR HDMI 4K - EDID Manager & HDMI Emulator

The HDfury Dr HDMI 4K is a plug-and-play EDID manager and HDMI emulator that fixes the most common HDMI problems — no signal, HDCP errors, failed handshakes, wrong resolution or missing audio formats. Simply connect it between your source and display, select one of the 40 EDID banks, and your equipment locks on reliably every time. Full 18Gbps bandwidth, zero latency, no signal degradation.

Solve HDMI handshake and HDCP issues in seconds

Most HDMI faults are caused by a bad EDID handshake: the source asks the display what it supports, gets a confusing answer and gives up. The Dr HDMI 4K ends that conversation on your terms. It presents a clean, fixed EDID to your source device, so it always outputs exactly the format you want — even when the display is off, behind an AV receiver, or at the end of a long cable run.

Key features

• 40 EDID banks at the turn of a dial — 8 Full HD presets, 24 UHD presets (Full Audio, S/PDIF or stereo audio variants), 7 user-programmable banks and 1 bank that copies the EDID from your display. Changing banks triggers a hot-plug event, so the source reconfigures itself within about 2 seconds.
• Full 18Gbps / 600MHz bandwidth — passes 4K60 4:4:4, HDR10, HDR10+, HLG, Dolby Vision (incl. LLDV), ALLM and IMAX Enhanced with zero latency.
• Lossless audio passthrough — Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio.
• Rescues long cable runs — compensates cable loss up to 50 m and injects +5V power for active HDMI cables. For extreme distances, pair it with a 4K fiber HDMI cable.
• HTPC mode — keeps the HDMI connection alive so Windows never "loses" your display or rearranges your desktop icons.

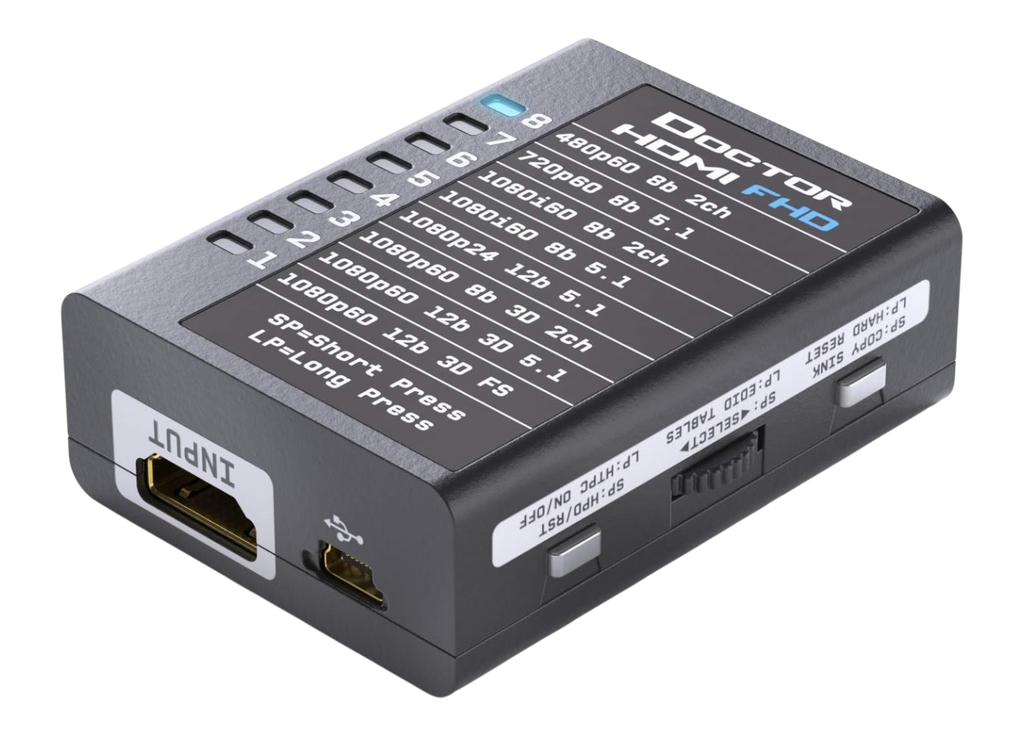

• Pro control — RS-232 remote control for rack installations and USB-upgradable firmware.

Typical problems the Dr HDMI 4K solves

• Source and display refuse to handshake — black screen or "no signal"
• An AV receiver or soundbar in the chain breaks 4K HDR passthrough
• Windows or macOS forgets display settings when the TV powers off
• A projector or matrix switcher reports the wrong EDID
• HDCP errors when mixing older and newer equipment
• Limiting a source's output resolution for older displays
• Unlocking LLDV (player-led Dolby Vision) on projectors and displays without native DV support — the well-known "LLDV trick" from the AVS Forum community

Specifications

Works with any HDMI source and display

The Dr HDMI 4K sits transparently in any HDMI 2.0b chain and works with every source up to 18Gbps: PlayStation 5, Xbox Series X, Apple TV 4K, Nvidia Shield, Blu-ray players, satellite and cable boxes, media players, laptops and HTPCs. On the display side it handles TVs, projectors, AV receivers, soundbars, matrix switchers and video walls — from the latest 4K HDR panels down to legacy DVI-D monitors.

Why a real EDID manager beats quick fixes

Many people first try to solve HDMI problems with a cheap splitter, adapter or new cable — and are disappointed when the black screen returns. Those products just pass the signal along and hope for the best. The Dr HDMI 4K is a dedicated EDID manager: it actively controls the handshake between source and display, with 40 selectable profiles, a true hot-plug generator, HDCP pass-through and full 18Gbps signal integrity at zero latency. That is why professional integrators keep one in every flight case — it turns HDMI troubleshooting from guesswork into a two-second dial turn.

What's in the box

• Dr HDMI 4K unit
• Power supply
• USB to mini-USB cable (for firmware updates and custom EDID upload)

Looking for a different model? Compare all Dr HDMI EDID managers in our range.

How to use the LLDV trick (step by step)

Enabling Dolby Vision on a projector or non-DV display with the Dr HDMI 4K takes about ten minutes:

1. Connect the Dr HDMI 4K between your source (Apple TV 4K, Nvidia Shield, Blu-ray player) and your display or projector.
2. Get an LLDV-capable EDID file — ready-made EDID files are shared in the AVS Forum LLDV thread, or copy the EDID from any Dolby Vision TV using the copy-sink button.
3. Upload the EDID to one of the 7 custom banks with the free Dr HDMI 4K app on your computer, connected via the included USB cable.
4. Select that custom bank with the rotary dial (white LED side). The hot-plug event makes your source re-read the EDID within ~2 seconds.
5. Enable Dolby Vision on your source. It now detects a DV-capable display and outputs LLDV — with the source doing the tone-mapping, your projector displays the result.

Every setup is slightly different: whether this works and how good it looks depends on your source and display combination. Sources that support LLDV output include the Apple TV 4K, Nvidia Shield and most 4K Blu-ray players. Prefer a plug-and-play solution? The HDfury Arcana 2 was built specifically for LLDV conversion.

Frequently asked questions

What is an EDID manager?

An EDID manager stores and presents display information (supported resolutions, refresh rates and audio formats) to your source device. The source always sees a valid, predictable EDID — even when the real display reports it incorrectly or is switched off.

Does the Dr HDMI 4K support Dolby Vision and HDR10+?

Yes. It passes Dolby Vision (including LLDV), HDR10, HDR10+ and HLG within its 18Gbps bandwidth, with zero latency.

Will it fix my "HDMI no signal" problem?

In most cases, yes. The vast majority of no-signal and black-screen faults are EDID or handshake related — exactly what this device is built to solve.

Can it enable Dolby Vision (LLDV) on my projector?

In many setups, yes. The Dr HDMI 4K can present an EDID that reports LLDV support, so your source performs the Dolby Vision tone-mapping itself (player-led DV) and outputs a signal that projectors and TVs without native DV support can display. Note that this is an EDID trick — results depend on your specific source and display combination. For dedicated LLDV conversion and full control over Dolby Vision processing, take a look at the HDfury Arcana 2 or Vertex 2.

Does it work with 8K?

The Dr HDMI 4K covers HDMI 2.0b (18Gbps, up to 4K60). For HDMI 2.1 sources up to 40Gbps, choose the Dr HDMI 8K or the full-featured HDfury VRROOM.
