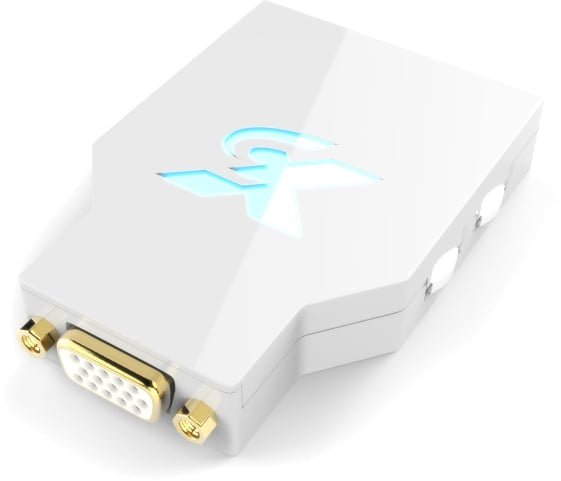

HDFury X3

The HDfury1 was RGBHV output only with a DVI-D input.

The HDfury2 introduced component (Y/Pb/Pr) output support with HDMI 1.1/1.2 input, colour depth upscaling to render 16-235 as 0-255, stereo sound output in both optical and analog, and supported third party accessories support on its output. The HDfury2 had an RGB output similar to the HDfury1 but with extended colour depth range for better colours.

For the HDfury X3, the component features from HDfury2 were kept while the RGB and audio output were completely re-worked and improved. We are now extremely proud to announce that the LEFT SHIFT issue in RGB mode is NO MORE! The HDfury3 allows users to shift the picture LEFT/RIGHT at will through push buttons. The colour depth upscaling feature is now also user selectable (ON/OFF via DIP switch). The HDfury X3 also features 4 customizable EDID banks, two of which may be used to limit the output resolution to 1080i out of the box (again via DIP switches). A very useful feature for anyone with a display that supports 1080i but not 1080p and has sources that do not offer manual setting of the output resolution. Also included are two HDMI 1.3 inputs with Deep Colour support and MANUAL or AUTO switching. Owners of fussy RGB displays will also be happy to learn that the H/V syncs may also now be force to either positive or negative via DIP switch. The RGB pixelclock bandwidth is greatly improved with 225Mhz support (1080p/72 is now perfectly resolved)!
For information on how to set these options see our HDFury X3 User Manual.

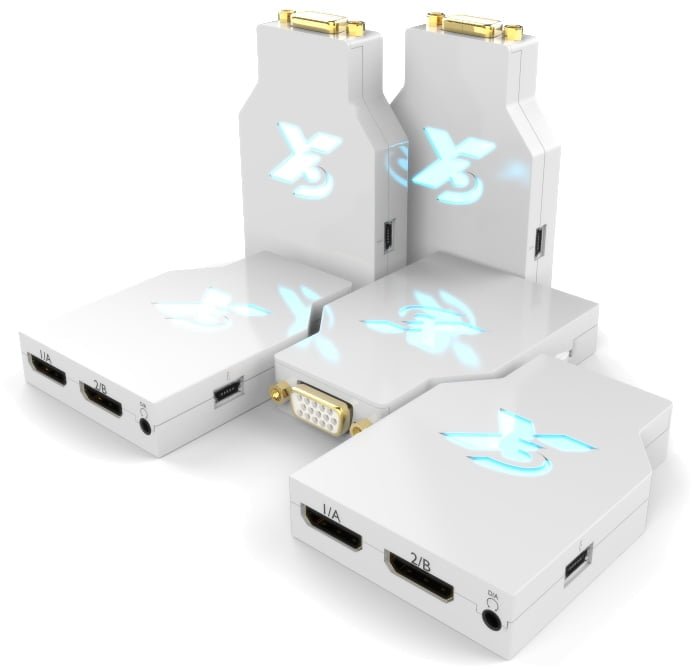

HDFury X3 – DAC (Digital-Analog-Converter) with 2x HDMI-A input converted to VGA (YCbCr / RGBHV).

2x HDMI input – 1x VGA / Component Output 1080p + digital and analog sound

Expand your monitor or projector with an analog VGA connection (YCbCr / RGBHV) to two HDMI FullHD 1080p interfaces.

The HDFury X3 draws the full potential from your screen and / or projector, up to resolutions of FullHD /1080p!

By expanding to two HDMI interfaces, you can connect two HDMI-capable players, such as a PlayStation or Xbox but also Blu-Ray player or satellite receiver, to your display device simultaneously.

The HDFury X3 is compatible with any HD capable player and can be easily switched between the two HDMI sources.

Features of hdfury x3 :

– Supports uncompressed Dolby Digital TrueHD / DTS Master Audio HD audio sources

– Perfect image centering in component and VGA mode

– From the included VGA and VGA to RGB extensions, the output signal can be extended or converted

– The combo jack output functions simultaneously as digital S/PDIF (optical) and analog 3.5mm jack output

– The HDFury X3 solves several “black screen” problems based on HDCP incompatibilities

Main features

• 2x HDMI 1.3 input with Deep Colour support (Manual or Auto switch mode available, user selectable)
• Component (YPbPr/YCbCr) and VGA (RGBHV) video output
• Sound output in both Analog and Digital Optical (S/PDIF 5.1 Dolby/DTS) through an innovative 3.5mm combo jack
• 4x EDID banks (2 per channel)
• Built-in user selectable output resolution limit settings
• Customisation settings available through DIP SWITCH
• Perfectly and automatically center image in all standard NTSC/PAL component modes
• Manually adjust horizontal screen position in all NTSC/PAL RGBHV modes
• Performs Colour Depth Upscaling in all modes (ON/OFF user selectable)
• Sync Polarity Inverter included
• Automatic SD/HD color-space selection
• Accept third party accessories on its output
• Improved output cable driver for driving long cable runs (40-50′)
• Software upgradeable

HDFury X3 Specs & Features

•  Input: 2 x HDMI v1.3 (DVI 1.0 compatible)
• Switch: Auto / PortA / PortB
• 10-bit deep color HDMI native support
• Output: VGA FEMALE output connector, 10 bit analog resolution.
• HDCP supported (Integrated HDCP decipher engine, Pre-programmed HDCP key)
• Horizontal shift capability for RGB output mode
• Enabled with a dip-switch, applied with push-buttons
• Output sync polarity selector for RGB modes (dip switch)
• Output format: Either RGB or YPbPr, dip-switch selectable
• YPbPr requires VGA->3RCA breakout cable
• All HD/SDTV formats from 1080p down to 480i, NTSC and PAL
• Including 1080p @ 72Hz PAL and NTSC (for RGB output only)
• Including 1080p @ 24Hz PAL and NTSC
• 11-bit 225MHz DAC processing (for true 10-bit analog output)
• Two separate Internal EDID EEPROM with complete CEA861 extension block
• Dip-switch selectable
• One EDID supports all formats
• The other EDID is up to 1080i, and no 24Hz support (by default, reprogrammable)
• Automatic Input Format Detection: Digital YCbCr and RGB
• Full BTB and WTW support in YPbPb output
• Automatically switches color-spaces for both HDTV and SDTV
• Precise black levels – no black crush in any standard mode
• Dual purpose audio output connector
• SPDIF digital output for 5.1 Dolby/DTS
• Analog L/R 2-channel stereo
• Industry-Standard Compliance
• HDMI 1.3
• EIA/CEA-861D
• DVI 1.0
• HDCP 1.1
• Digital Video Input / Output
• Dual integrated HDMI 1.3 cores
• Supports DTV resolutions up to 1080p @ 72Hz or 720p/1080i @ 120Hz with 36-bit color depth.
• Flexible digital video interface:- 24/30/36-bit RGB/YCbCr 4:4:4- 16/20/24-bit YCbCr 4:2:2- 8/10/12-bit YCbCr 4:2:2 (ITU-R BT.656)
• Integrated RGB Color Space Converter for both RGB-to-YCbCr and YCbCr-to-RGB (both 601 and 709) with true 12-bit accurate data using 14-bit processing
• 4:2:2 <> 4:4:4 converter with 12-bit accurate data using 14-bit processing
• Digital Audio Output
• Industry-standard S/PDIF output
• Supports 2-channel 32-192kHz stereo audio
• Supports IEC60958 2-channel PCM
• Capable of passing IEC61937 compressed audio (5.1 Dolby® Digital, DTS, etc.)
