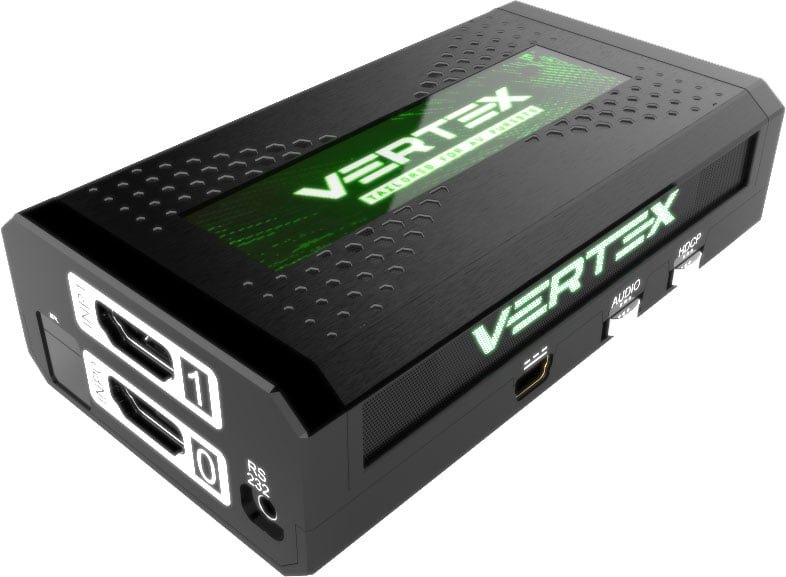

Hdfury Vertex
The 4K Digital Messiah that the AV World have been waiting for is finally a few clicks away from you.
After two years of collecting wishes and feedback from HT hobbyists and professional content creators, we are proud to bring you this exclusive HDfury 10th Anniversary edition that is set to shake the ground of the AV scene.
It is a true 2×2 18Gbps HDMI matrix/spliter/switcher/scaler/converter/audio de-embedder, supporting any HDMI, any HDCP and any HDR up to HDR10+, HLG or Dolby Vision (including LLDV).
HDMI Audio is compatible with any format in existence today. HDMI2.1 features such as Auto Low Latency Mode and Variable Refresh Rate are supported for EDID signaling and source detection.
It provides full EDID management for an optimal handling of today’s wide variety of sources and displays and comes with OLED, OSD, IR, RS232 and stereo or optical audio output for ARC up to Atmos®, DD+®, Dolby® 7.1, DTS® and LPCM.
Offering more than all Linker scaling benefits and Integral splitting advantages combined, Vertex will push any setup to its highest state of work and provide you with relevant information and possible interaction.
Instantly get and feel the HDMI supervisor power through OSD, OLED, Windows GUI, RS232, iOS/Android APP (with GoBlue) and more…
Note that it have the best 18Gbps signal integrity ever seen for a 5v device, thus ensuring seamless integration even with marginal cables that would otherwise not work with others devices for high bandwidth signals.
It is more than an AV geek device, it is crafted with a lovely passion and tailored for AV purists.
Information
All setups suitability
Vertex supports any HDMI, HDCP and HDR sources or sink and operate in-between to ensure all your equipment work at their best capabilities.
AutoSetup Wizard
Think it’s complicated? Hdfury Vertex can suit any user needs with ease. Simply connect sources and sink devices in the right port and add power, Vertex does the rest.
Unlock HDCP 2.2
Get all advantages from HDCP2.2 sources and keep or convert them per channel to suit any HDMI or HDCP sink.
Info is Everywhere
Whether it is on OLED, OSD, Windows GUI or via Android/iOS APP with the optional GoBlue, your setup info is always available at first sight.
Digital Doctor
Any EDID related issues, HTPC issues or HDMI/HDCP handshake, compatibility or revision issues can be solved with Vertex.
iOS & Android APP
Control Vertex using your tablet or smartphone with the optional GoBlue Bluetooth and IR dongle.
Custom configuration
Share your config with the community, display any text on OSD, set your start page, remove visually annoying or lamp consuming artifacts like TV channel logo and more.
Upscale Port
Upscaling from FHD to UHD up to 18Gbps is available to display your 1080p sources at 2160p on your native 4K display.

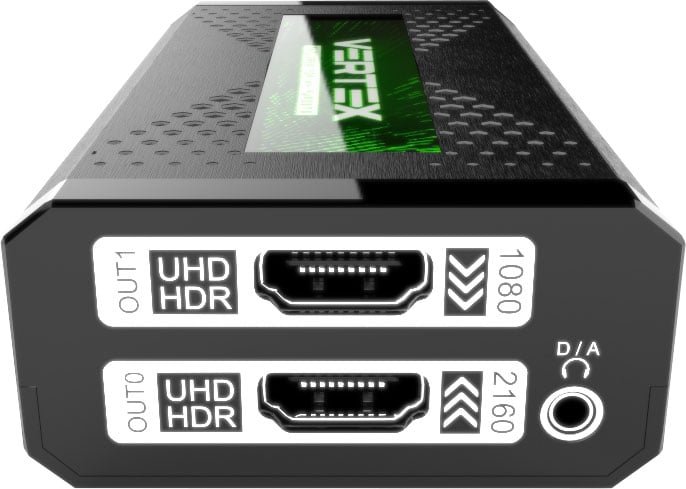

Downscale Port
Connect any FHD sink in any UHD setup, play 4K HDR on main stream, and feed your AVR or older display with a 1080p stream. For HDR to SDR,
18Gbps Splitter
1 input replicated to 2 outputs, each individual output can be used to upscale or downscale based on your setup needs.
600 Mcsc Matrix
Vertex can process two 4K HDR signals up to 18Gbps simultaneously and apply scaling individually per channel.
Windows GUI
Access the most advanced Windows GUI we ever created, control your Vertex unit with ease and style through hundreds of options.
Lab & Studio Toolkit
Public API/DLL access and extensive control to extract, edit and inject HDR metadata, AVI and VSIF Infoframe. Read SPD, Audio, Vendor Specific and more.
HDMI revision: | HDMI 2.0b (Level A) 600Mcsc – 18Gbps |
---|---|
Max Resolution: | 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b |
I/O: | 2 HDMI In, 2 HDMI Out, IR, RS232, USB, Analog Jack, Optical Out. |
Upscale port: | FHD 1080p to UHD 2160p & 4K/DCI |
Downscale port: | UHD 2160p & 4K/DCI to FHD 1080p |
Signal Conversion: | Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP |
HDCP Conversion: | Any HDCP to any HDCP with CST1 support |
Operating Modes: | 18Gbps Scaler, Switcher, Splitter & Matrix with CEC, ARC and EDID management |
Special Modes: | CEC Command, HTPC, Disable HDR, HDMI Doctor and JVC Macro. |
EDID Modes: | 10 EDID Flags, 100 EDID Banks (10 custom) |
Infoframe Modes: | Capture, edit, block or replace HDR metadata, AVI & VSIF. Read SPD, Audio, HDMI Vendor, HDMI |
Control Modes: | IR, Windows GUI, RS232 for Linux/MAC/Win, Android/iOS with GoBlue |
On Screen Display: | Editable with custom text and mask. (cover TV channel logo) |
Oled Display: | 3.12″ Diagonal, 256×64, 16 green colors |
Dimension: | 3.9″L x 2.4″W x 0.8″H – in CM: 10 x 6 x 3 |
Weight: | 130g – 0.3 LBS |
Other info: | Input Lag <1ms (nanoseconds count) |
