This is a special set of converter and extenders
what is in the box
1 x complete set HDFURY VERTEX (more details on the website see vertex)
1 x complete set HDMI EXTENDER OVER CAT5E/6 1080P AVS-EXT60
1 x complete set 4K HDMI EXTENDER W/IR &RS232 AVS-EXT4KPOC
6 x HDMI Cable AWG28 length 2M

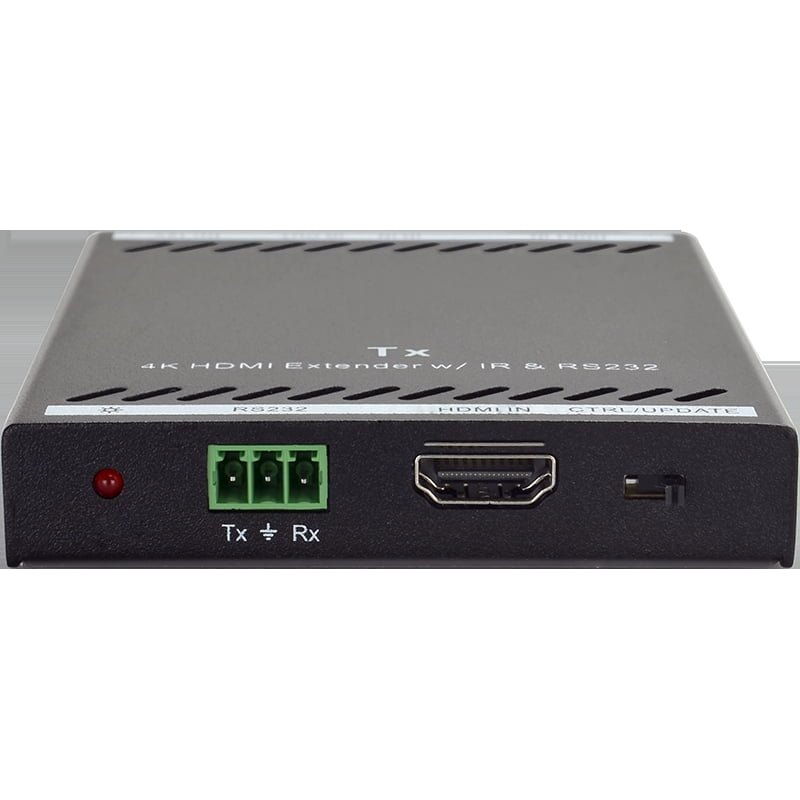

4K HDMI Extender w/IR &RS232 AVS-EXT4KPOC
This Audio Visual Solutions AVS-EXT4KPOC is an HDBaseT Extender set consist of transmitter (TX) and receiver (RX). It distributes HDMI signal via CAT5e/CAT6a cable at 70m/PoC, and enables IR and RS232 pass-through to control local source device from remote or far-end display.
4K HDMI Extender Features
- Supports HDMI1.4 & HDCP2.2.
- Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p.
- Supports bi-directional IR and RS232 pass-through for long-distance control.
- Supports bi-directional PoC for simplified wiring.
- Supports CEC.
- Features DIP switcher for choosing Control or Update mode.
4K HDMI Extender Package List
- 1 x Transmitter (TX)
- 1 x Receiver (RX)
- 2 x TX Mounting Ears with 2 Screws
- 2 x RX Mounting Ears with 2 Screws
- 4 x TX Rubber Feet
- 4 x RX Rubber Feet
- 1 x Power Adaptor (12VDC, 1A)
- 1 x User Manual
Panel Description
① Power LED Illuminates red when power is applied.
② RS232 Euroblock/Phoenix connector for connecting an RS232 data device.
③ HDMI IN (TX) HDMI port for connecting the video source device (e.g. Blu-ray DVD)
HDMI OUT (RX)HDMI port for connecting the video display.
④ CTRL/UPDATE Switch for determining the behavior of the RS232 connection.
When in the CTRL position, it serves as an RS232 serial extender.
When in the UPDATE position, it allows you to update the Valens IC program by connecting to a PC and running the batch file.
⑤ HDBT OUT (TX) RJ45 jack for connecting the Cat5e/6 cable to the Receiver.
HDBT IN (RX) RJ45 jack for connecting the Cat5e/6 cable to the Transmitter.
⑥ IR IN 3.5mm jack for connecting an IR Receiver (not included).
⑦ IR OUT 3.5mm jack for connecting an IR Emitter (not included).
⑧ DC 12V DC barrel connector for connecting the included AC power adaptor.
4K HDMI Extender Specifications
Model spece |
Transmitter (TX) |
Receiver (RX) |
Input |
HDMI IN |
HDBT IN |
Output |
HDBT OUT |
HDMI OUT |
Control |
IR IN, IR OUT, RS232 |
IR IN, IR OUT, RS232 |
General |
||
Maximum Video Resolution |
4K×2K@60Hz 4:2:0, including 1080p@60Hz |
|
Transmission Mode |
HDBaseT |
|
Transmission Distance |
1080p signal to 70m, 4K signal to 40m |
|
Bandwidth |
10.2Gbps |
|
Video Standard |
HDMI1.4 with HDCP2.2 |
|
Power Consumption |
10 watts |
|
Operating Temperature |
-10 ℃~ 50℃ |
|
Operating Humidity |
0% ~ 90% |
|
Power Supply |
Input Power: 12VDC 1A or Power over Cable (PoC); AC Adaptor Input Power: 100~240VAC, 50/60Hz |
|
Dimension (W*H*D) |
106mm x 16mm x 84mm |
|
Net Weight (g) |
250g |

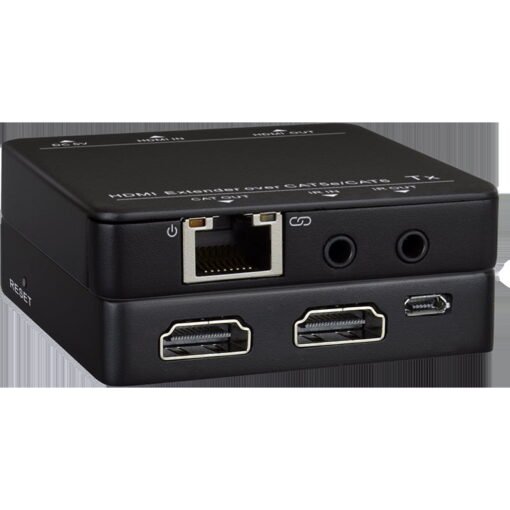

HDMI Extender over Cat5e/6 1080p AVS-EXT60
The AVS-EXT60 HDMI extender extends HDMI signal between Transmitter and Receiver over CATx cable. It supports 1080p@60Hz video signals up to 55m including embedded multi-channel audio and HDCP1.4.
Built-in EDID make this product compatible with most display and source device, to ensure HDMI transmission.
Advanced power design (PoC) allows this product to be powered at Transmitter, and only one power supply is required. In addition, the AVS-EXT60 send/receive IR signals each other over the same CATx cable with IR pass through.
Features
- Supports HDMI1.4, HDCP1.4 compliant.
- Supports built-in EDID to ensure HDMI signals transmission from source to display.
- The transmission of 1080p@60Hz (max) signal is up to 55m.
- Supports bidirectional IR pass-through.
- Supports PoC, the Receiver can be powered via Transmitter.
Package Contents
- 1 x AVS-EXT60T
- 1 x AVS-EXT60R
- 1 x Power Adaptor (5VDC 1A)
- 2 x Velcro Tape
- 1 x IR Receiver (5V)
- 1 x IR Emitter (5V)
- 1 x User Manual
Panel Description
Transmitter (TX)
① CAT OUT: RJ45 connector with Green& Yellow indicators. Connect to Receiver over CATx cable.
The Green indicator lights up when powered on.
The Yellow indicator lights up when linked successfully between Transmitter and Receiver.
② IR IN: Connect with IR Receiver.
③ IR OUT: Connect with IR Emitter.
④ DC 5V: Micro USB, connect to the power adaptor.
⑤ HDMI IN: Connect to HDMI source.
⑥ HDMI OUT: HDMI loop output, connect to display.
⑦ RESET: Reboot.
Receiver (RX)
① CAT IN: RJ45 connector with Green& Yellow indicators. Connect to Transmitter over CATx cable.
② IR IN: Connect with IR Receiver.
③ IR OUT: Connect with IR Emitter.
④ HDMI OUT: Connect to display.
⑤ EQ SETTING: After the system is connected, press this button three to six times repeatedly until the best image output. When the cable, source, or display is changed, or reset the output resolution, it is need to press this button repeatedly to ensure the best image.
Specifications
Transmitter |
Receiver |
|
Input |
(1) HDMI |
(1) CAT |
Input Connector |
(1) 19-pin type-A female HDMI |
(1) RJ45 |
Output |
(1) HDMI; (1) CAT |
(1) HDMI |
Output Connector |
(1) 19-pin type-A female HDMI; (1) RJ45 |
(1) 19-pin type-A female HDMI |
Control |
(1) IR IN; (1) IR OUT |
(1) IR IN; (1) IR OUT |
Control Connector |
(2) 3.5mm mini jacks |
(2) 3.5mm mini jacks |
General |
||
Transmission Distance |
1080p@60Hz≤55m |
|
HDMI Standard |
HDMI1.4, HDCP1.4 compliant |
|
EDID Management |
Built-in EDID |
|
Power Supply |
Input: 100VAC~240VAC, 50/60Hz; Output: 5VDC 1A |
|
Power Consumption |
4W (Max) |
|
Work Temperature |
-10~55℃ |
|
Relative Humility |
10%-90% |
|
Dimensions (W*H*D) |
66mm x 16.8 mm x66 mm |
|
Weight |
Transmitter: 36g; Receiver: 38g; |
